      第一屆智能光學設計大賽
      The 1st Intelligent Optical Design Competition
      應用場景描述
      Application Scenarios Description



      大賽申報主題:用于微結構晶片檢測的光學系統
      Theme: Optical System for Investigation of Micro-Structured Wafer
      申報人姓名(如多人,請寫多個名字):王欣
      Name (If there are multiple people, please write multiple names): Wang Xin
      申報單位:訊技光電科技(上海)有限公司
      Units: INFOTEK SHANGHAI
      應用領域(教育領域 / 科研領域 / 工業領域): 工業領域
      Applications(Education/R&D/Industry):Industry

      應用場景描述
      Application Scenarios Description

      用于微結構晶片檢測的光學系統
      摘要

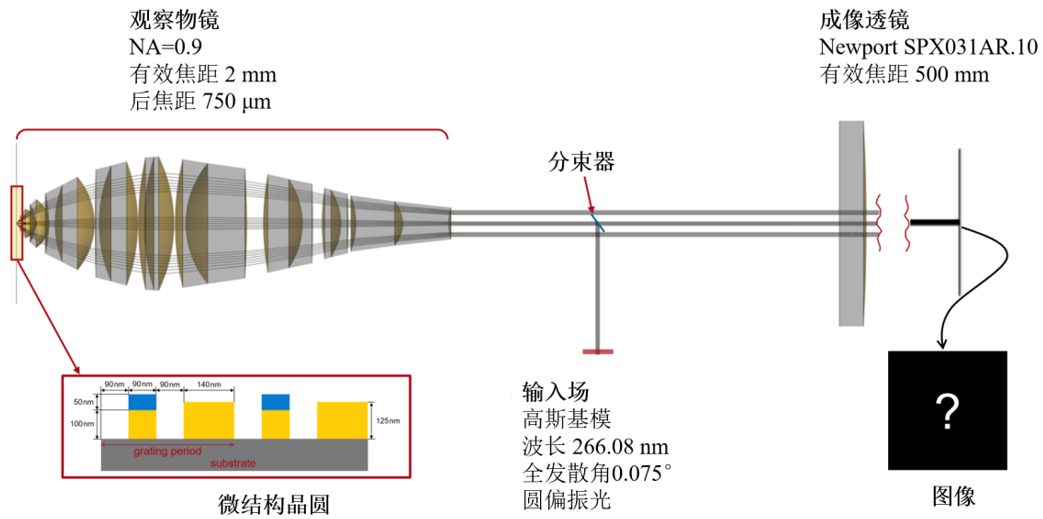

      在半導體工業中,晶片檢測系統被用來檢測晶片上的缺陷并找到它們的位置。為了確保微結構所需的圖像分辨率,檢測系統通常使用高NA物鏡,并且工作在UV波長范圍內。作為例子,我們建立了包括高NA聚焦和光與微結構相互作用的完整晶片檢測系統的模型,并演示了成像過程。

      系統描述

      Optical System for Investigation of Micro-Structured Wafer
      Abstract

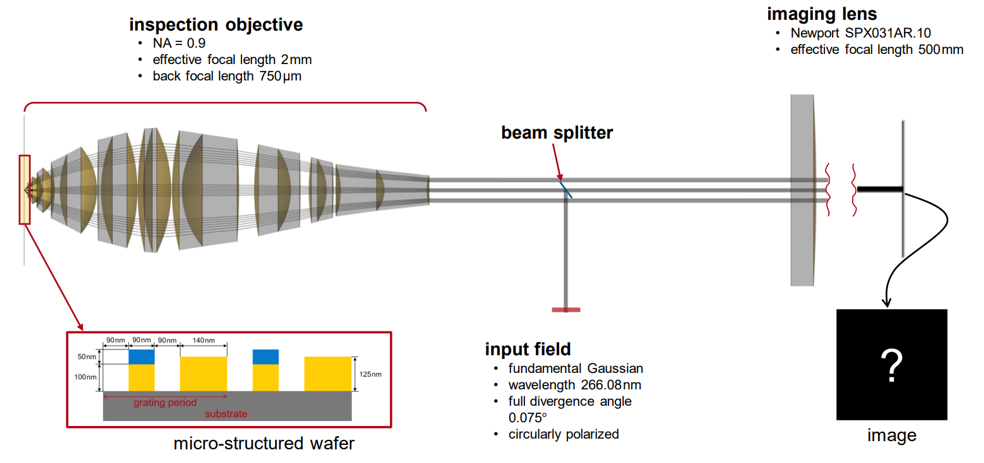

      In the semiconductor industry, wafer inspection systems are used to detect defects on a wafer and find their positions. To ensure the necessary image resolution for the microstructures, the inspection system often employs a high-NA objective and works in the UV wavelength range. As an example, a complete wafer inspection system including high-NA focusing and light interaction with microstructures is modeled, and the formation of the image is demonstrated.

      System Demonstrate

      填寫完成后,請將此文件與簽字版大賽承諾書一并發送郵件至 virtuallab@infotek.com.cn ,郵件標題與本文件標題請保持一致。
      After completing the filling, please send this document along with the signed version of the competition commitment via email to virtuallab@infotek.com.cn, Please keep the email title consistent with this file title.



      應用場景描述撰寫注意事項
      Notes on writing application scenario description:
      1. 我們歡迎任意類型光學系統的投稿,不僅僅局限于該示例。
      We welcome any type of optical system, not limited to this examples !
      2. 請使用150-250字清晰簡潔地描述您的場景,并用通過示意圖來展示場景的建模和設計思路。
      Please use 150-250 words for a clear and concise description of your scene and an illustration to demonstrate the modeling and design of the scenario.
      3. 在您的場景描述或演示中,您需要清楚地描述光源是什么,元件是什么,要測量什么物理量,或者要達到什么目的。
      In your scene description or demonstrate, you need to clearly describe what the light source is, what the component is, what the physical quantity is to be measured, or what the purpose is to be achieved.
      4. 您的應用場景,需要提交中英文雙語版本。
      Your application scenario requires submission of bilingual versions in both Chinese and English.



      您僅需提交以上信息即可,以下鏈接為該示例的完整描述,請您參考。
      You only need to submit the content of the above information. The following link provides a complete description of the case for your reference:

      用于微結構晶片檢測的光學系統 - 訊技光電科技(上海)有限公司 (infotek.com.cn)
